SiC-Photodiodes for UV range
Individual SiC-components for maximum efficiency
The reliable properties of our photodiodes and components are continuously improved by many years of know-how. Starting with the own development of the semiconductor chips, over precise sensor electronics up to UV proven assembly and connection technologies: We offer competent advice also for your project.
You will find the largest selection of SiC-based optoelectronic components with us and can choose from over 100 different SiC components the best solution for your application. For customization you can contact us at any time.
You will find the largest selection of SiC-based optoelectronic components with us and can choose from over 100 different SiC components the best solution for your application. For customization you can contact us at any time.

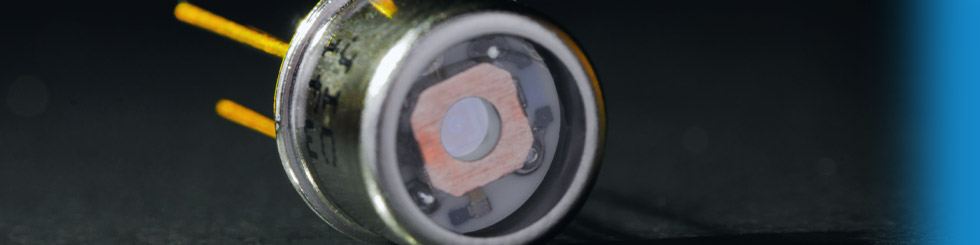

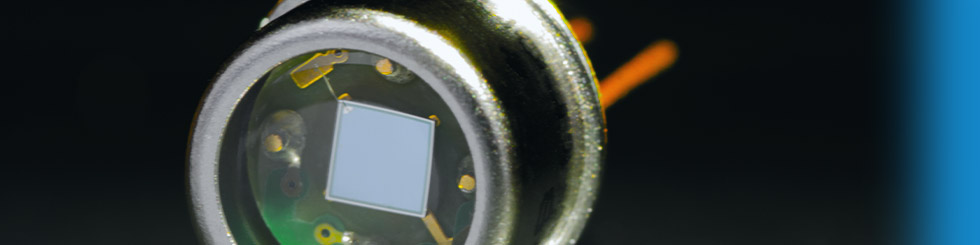

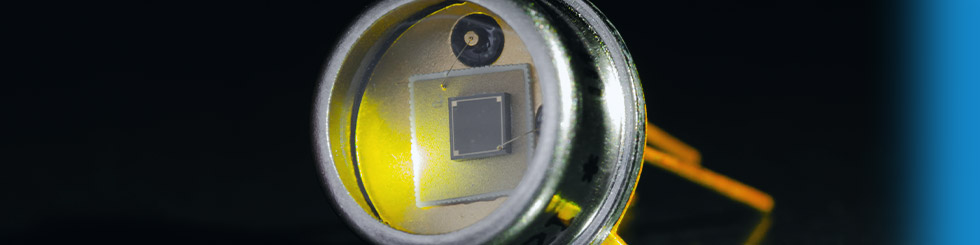

Silicon carbide (SiC) UV photodiodes
offer unbeatable advantages over Si, TiO2 GaN or diamond based devices:
- Sunblind: spectral response in range of 200 to 400 nm only
- Proven outstanding long term stability under high dosis of UV-C- radiation (up to 1000 Wm-2)
- Excellent temperature stability (temperature coefficient Tk < 0,06 %/K), operating temperature up to +150 °C)
- Offered with radiation-hard and space approved filters for UV-A, UV-B and UV-C.
- Custom filter options with specific low-, high- or band-pass characteristics
- Integrated amplifier option
- In-house SiC chip production since 2008
- Typical applications of SiC photodiodes: flame control, water disinfection, laser-monitoring and erythema-sensors
Please note that the unique characteristics and high performance of our SiC photodiodes are a result of the UV-proven assembly technology and the consequent development and improvement of our SiC chips. No competitor offers a wider selection of electro-optical components based on SiC like ifw optronics. Among more than 100 different types of SiC-components, you will find the best suited solution for your photodiode or sensor application. In case you need further customization of our products, feel free to contact us.
